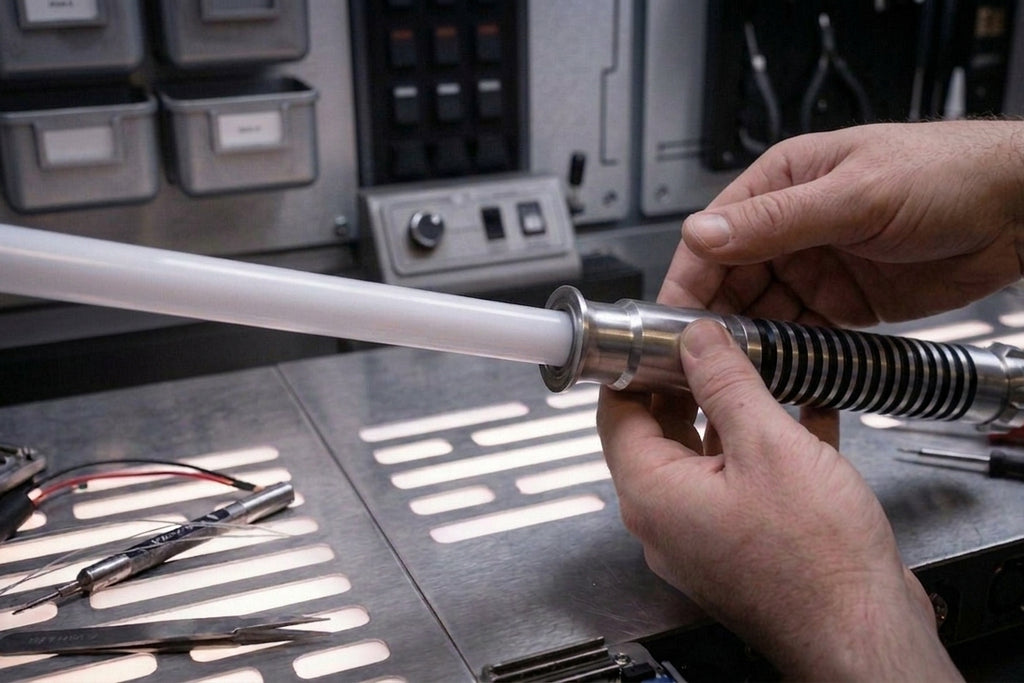

How to Install Saber Blade the Right Way

Nothing kills the Jedi moment faster than a loose blade wobbling in the hilt. If you're wondering how to install your saber blade correctly, the good news is that it usually takes just a few seconds - as long as you know what kind of saber you have and you don't force anything.

It usually easier to demonstrate this on video, as I of course do on my Youtube channel, but here goes the article.

It might sound crazy that installing a lightsaber blade could need videos or tutorials, in most cases it actually doesn't, really. But because these sabers are used for sport, in dueling conditions, there is a risk of the blade flying away, or getting damaged, if installed wrong. So here comes the guide.

For most modern lightsabers, blade installation is simple. Slide the blade into the emitter, seat it properly, tighten the retention screws, and test for stability before ignition or sparring. The part that trips people up is that baselit and neopixel sabers are not installed exactly the same way, and a heavy-handed approach can scratch a blade, damage pins, or leave you with a blade that feels secure until the first swing.

How to install saber blade setups by saber type

Before you touch the emitter, figure out which blade system you're working with.

A baselit saber shines from LEDs inside the hilt, so the blade itself is usually a hollow tube designed to carry and diffuse that light. Installation is straightforward because there are no electronic contacts at the bottom of the blade. You still want to line it up cleanly and tighten it evenly, but the process is forgiving.

A neopixel saber is different. The blade contains internal LEDs, and the hilt connects to the blade through a pixel connector and pogo pins. That means fit and alignment matter a lot more. You are not just inserting a tube - you're connecting electronics. If you jam the blade in at an angle or crank screws too hard before the blade is fully seated, you can cause problems that are completely avoidable.

If you are not sure which version you own, check the emitter area. A neopixel hilt usually has visible spring-loaded pins or a connector at the bottom of the blade socket. A baselit hilt will not.

What you need before installing the blade

Most sabers ship with what you need: the hilt, the blade, and one or more retention screws. You may also have an Allen key or hex wrench for tightening the screws. Sabers often offer multiple retention points, although in most cases you only need one. You want your blade to get pushed tight against the hilt wall, offering as much surface contact as possible.

It also helps to work on a soft surface. A desk mat, towel, or bedspread is a lot better than tile or concrete. That protects the hilt finish, the blade tip, and your nerves if something slips out of your hand.

If brand new, before installation, make sure the blade is unwrapped (or the blade may end up stuck in the hilt).

Installing a baselit saber blade

Baselit installation is the easy mode version, but it's still worth doing carefully.

Start by loosening the retention screws enough so the blade can slide into the emitter without scraping hard against the screw tips. You do not usually need to remove the screws completely. In fact, that often makes things more annoying because tiny screws love to vanish into another galaxy.

Insert the blade slowly into the emitter until it bottoms out in the socket. You want it fully seated, not hovering a fraction of an inch above the base. Once it's in place, hold the blade straight and begin tightening the retention screw.

The goal is snug and secure, not over-tightened like you're repairing a starfighter under fire. You want the screw to push against the polycarbonate, not pierce through it.

Once tightened, gently try to move the blade side to side. A tiny bit of movement can be normal depending on blade diameter and emitter tolerance, but it should not feel loose. If it shifts easily then there might be too much of a gap between the emitter diameter and the blade diameter, try rotating the blade and tighten again to see if it changes anything. If still wobbly, now you can use a second screw. Try to put both screws on the same side of a 180° axis. You want both screws to push the blade to the opposite side.

How to install saber blade components on neopixel sabers

Neopixel blades need a little more respect. They are awesome, bright, and immersive - but the connector area is not the place to get rough.

Loosen the retention screws first so the blade can enter the socket cleanly. Then line up the blade with the emitter and lower it straight down. Do not twist aggressively as you insert it. A slight, gentle rotation can help the blade settle, but you never want to grind the bottom of the blade against the pins. It's the best way to bend a pin, and kill your neopixel connector.

As the blade reaches the bottom of the socket, you may feel a soft stop when it contacts the connector. Press down gently until the blade is fully seated. If it does not seat naturally, pull it back out and check alignment. Forcing it is how people damage pin sets.

Once the blade is seated, tighten the retention screw the same way you would on a baselit saber - see above. The difference is that with neopixel, the screws are doing two jobs. They secure the blade for handling and help keep stable contact at the base. Too loose, and the blade may flicker or disconnect during motion. Too tight, and you can mark the blade or stress the fit more than necessary.

After tightening, ignite the saber and watch for a consistent blade effect. If the blade does not light, flickers oddly, or cuts out when moved, turn it off and check the seating. In many cases, the blade simply is not fully connected.

Common mistakes that cause loose or faulty blade installs

The biggest mistake is over-tightening the retention screws. People assume tighter means safer, but too much pressure can dent the blade surface, strip the screw, or create uneven pressure that actually makes the fit worse. Snug is enough.

Another common issue is not inserting the blade all the way. This is especially true with neopixel sabers, where the blade may seem installed even though it is sitting just above the connector. It might light briefly, then lose contact the moment you swing it.

There is also the classic blade wobble problem. Sometimes that's installation, and sometimes it's just emitter tolerance. Both blades and saber models can have the tiniest diameter difference and some wobbling appears. Humidity and temperature can also play a role in expanding/shrinking materials by a millimeter. A small amount of play does not always mean something is wrong. What matters is whether the blade stays secure under normal use.

As mentioned before, if there some wobble, use 2 screws on the same side of a 180° axis, meaning within 180°, ideally within 90° even. The worst situation is to position 2 screws at exactly 180°, opposite to each other. You're creating an axis on which the blade will probably wobble even more. It rarely is the correct position.

Finally, do not ignore blade diameter. Most common blades are 1 inch, while some hilts use 7/8 inch blades. If the fit feels wildly off, check the specs before assuming the hilt or blade is defective.

Safety checks before dueling or spinning

Before you start choreography, backyard spins, or full-contact dueling, do a quick readiness check.

Make sure the blade is fully seated, the retention screws are evenly tightened, and the blade does not rattle excessively. If you're using a neopixel blade, ignite it and test motion lightly before going hard. A display blade setup and a duel-ready setup are not always the same thing, especially if you're using a thin-wall blade for cosplay photos instead of a heavy-grade blade for impact.

This is where use case matters. If your saber is mainly for shelf presence and convention carry, installation can prioritize clean alignment and finish protection. If you're training or dueling, security matters more, and you may want to recheck screw tightness periodically during a session.

If your blade still will not sit correctly

If the blade stops early, remove it and inspect the socket. Sometimes a screw tip is still protruding too far into the emitter. Sometimes foam, packing dust, or a small internal obstruction is the culprit. On neopixel models, inspect the connector area carefully and make sure the pins look even and unobstructed.

If the blade installs but stays crooked, loosen the screws, straighten the blade by hand, and retighten in small turns.

If you notice repeated flickering on a neopixel saber after a correct install, the issue may not be the blade insertion at all. It could be battery charge, connector cleanliness, or contact wear. Or simply a flickering blade mode. That is where basic troubleshooting beats forcing the blade in and hoping for the best.

A better blade install means a better saber experience

Installing a saber blade is one of those simple jobs that feels even simpler once you know what to look for. Respect the difference between baselit and neopixel, seat the blade fully, tighten the retention screws evenly, and test before you go full duel mode. That little bit of care keeps your saber looking better, performing better, and feeling worthy of the galaxy far, far away energy you bought it for.

When your blade locks in cleanly, everything after that feels right - the ignition, the spins, the photos, the display stand, all of it. Treat the install as part of the ritual, and your saber will thank you for it.
